This series achieves a maximum submerged depth of 3.6 meters. It employs a dual-support structure: above the liquid level, two rows of angular contact ball bearings bear axial loads; below the liquid level, one or two pairs of sliding bearings (i.e., shaft sleeves and bushings) bear radial loads. The flow-through components are crafted from high-quality JSB alloy material, resistant to high-temperature sulfuric acid corrosion, ensuring long service life.

Used in drying and absorption cycle systems of sulfuric acid production, as well as for conveying finished concentrated sulfuric acid. Suitable for transporting sulfuric acid at temperatures ≤120°C with concentrations ranging from 93% to 98%, or fuming sulfuric acid at temperatures ≥105°C.

Product Details：

Vertical Sulfuric Acid Pump for 93-98% Concentrated Acid Transfer Systems

This vertical sulfuric acid pump for 93-98% concentrated acid transfer systems is engineered for reliable performance in sulfuric acid production environments. With a maximum submerged depth of 3.6 meters, it is ideal for drying and absorption cycle systems where stable operation is essential. The advanced dual-support structure enhances shaft stability, using dual-row angular contact ball bearings above the liquid level to handle axial loads, while one or two pairs of sliding bearings below the liquid level absorb radial forces. The wetted components are manufactured from high-quality JSB alloy, providing excellent resistance to high-temperature sulfuric acid corrosion and ensuring long service life in continuous-duty applications.

High Temperature Oleum Pump for Sulfuric Acid Drying and Absorption Processes

This high temperature oleum pump for sulfuric acid drying and absorption processes is designed for handling aggressive chemical media under extreme conditions. It is suitable for transporting sulfuric acid with concentrations ranging from 93% to 98% at temperatures up to 120°C, as well as fuming sulfuric acid at temperatures of 105°C and above. The robust submerged design and corrosion-resistant materials help maintain consistent performance while reducing wear and maintenance requirements. For industrial users seeking a dependable pump for concentrated acid transfer, drying tower circulation, and absorption system operation, this series provides an efficient and durable solution.

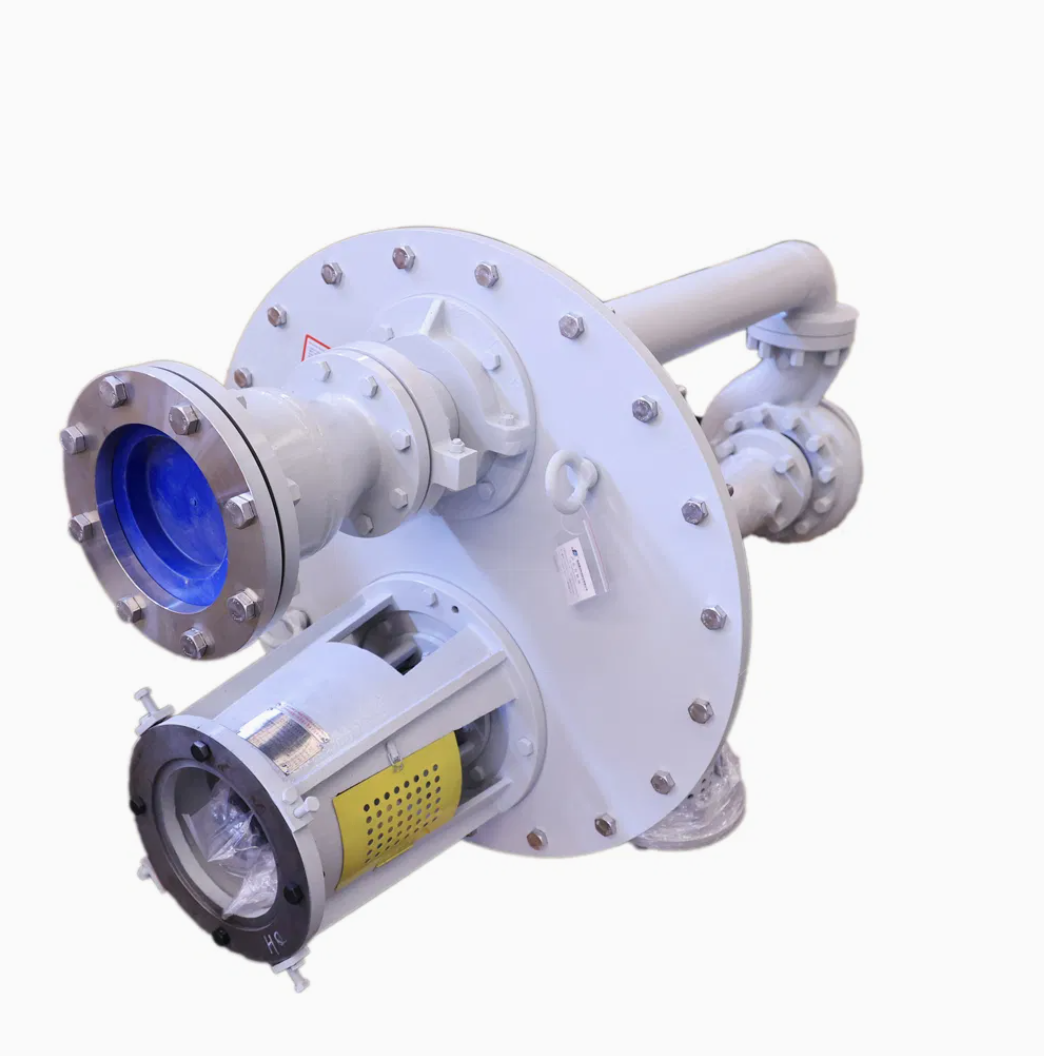

Liquid Sulfur Pump for High Temperature Sulfur Transfer and Industrial Chemical Applications

A liquid sulfur pump is a critical solution for the sulfur chemical industry, designed to handle high-temperature sulfur safely and efficiently in demanding process environments. In sulfur handling systems, maintaining sulfur in a liquid state is essential to ensure smooth transfer and prevent solidification in pipelines. A high-performance liquid sulfur pump provides stable flow, reliable operation, and long service life, making it an ideal choice for continuous industrial processes involving molten or heated sulfur.

In many sulfur production and processing plants, a liquid sulfur pump is used to transfer sulfur from melting units to storage tanks, loading systems, or downstream chemical processes. Because sulfur must be kept within a controlled temperature range, a high temperature sulfur pump or high temperature molten sulfur pump is often required to maintain consistent performance. These pumps are typically designed with heating jackets or insulation systems to prevent temperature loss and ensure that sulfur remains in liquid form during transfer. This helps reduce the risk of blockages and improves overall system efficiency.

As a versatile industrial solution, the liquid sulfur pump can also function as a sulfur pump, chemical pump, or chemical transfer pump depending on the application. In sulfur recovery units, petrochemical plants, and refineries, it is commonly used for continuous sulfur circulation and transfer. Its robust construction allows it to handle not only high temperatures but also variations in sulfur viscosity, ensuring smo
