This series of submerged pumps features a maximum submerged depth of 3.6 meters and adopts Jiahe’s patented dual-support structure. Above the liquid level, two rows of angular contact ball bearings withstand axial loads; below the liquid level, one or two pairs of sliding bearings (shaft sleeves and bushings) bear radial loads, ensuring stable and vibration-resistant operation of the entire unit.
The flow-through components are precision-cast from Jiahe’s proprietary high-quality JSB special alloy, which delivers excellent corrosion resistance to high-temperature concentrated sulfuric acid, greatly extending service life and enabling long-term stable operation in sulfuric acid applications.
Application Scope
Specially designed for drying and absorption circulation systems in sulfuric acid production plants, as well as the transfer of finished concentrated sulfuric acid.Suitable for handling:
- Concentrated sulfuric acid with a temperature ≤120°C and concentration of 93%–98%
- Fuming sulfuric acid with a temperature ≥105°C
Widely used in sulfur-based acid production, smelting acid production, flue gas acid production and other scenarios, it is a reliable conveying solution for high-temperature and highly corrosive working conditions in the sulfur and phosphorus chemical industry.
Product Details：
| Max.Capacity | ~3520m³/H | Max.Head | ~55m |
| Impeller Number | Single-Stage Pump | Driving Type | Motor |
| Influent Type of Impeller | Single Suction Pump | Working Pressure | 1.0 MPa |
| Usage | Pump, Pumps | Position of Pump Shaft | Vertical Pump |
| Temperature | ~120℃ | Diameter | 50~600mm |
| Material Composition | Metals and Special Alloys | International Certification | API / CE / ISO |
| Transport Package | Wooden Box Packaging | Feature1 | Corrosion Resistant |
| Origin | China | Specification | Customizable |

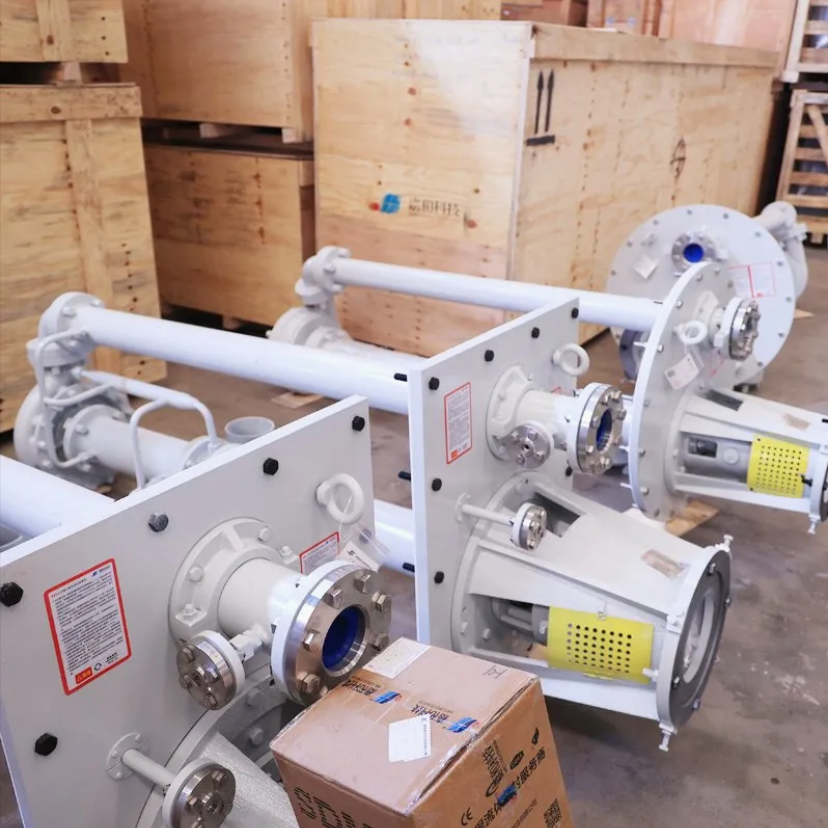

Vertical Corrosion-Resistant Sulfuric Acid Sump Pump for 98% H₂SO₄ Handling
This vertical corrosion-resistant sulfuric acid sump pump is engineered specifically for long-term operation in 93%–98% concentrated sulfuric acid environments, delivering exceptional stability in high-temperature and highly corrosive chemical processes. Built with Jiahe’s patented dual-support structure, the pump ensures precise axial and radial load distribution through two rows of angular contact ball bearings above the liquid level and multiple sliding bearings below the liquid level. This configuration minimizes vibration, enhances rigidity, and guarantees reliable performance even under continuous operation
All wetted components are manufactured using Jiahe’s proprietary JSB special alloy material, known for its outstanding corrosion resistance and mechanical strength when exposed to hot sulfuric acid and fuming sulfuric acid. With a maximum submerged depth of 3.6 meters, the pump allows efficient liquid transfer without requiring priming and prevents cavitation during startup or fluctuating liquid levels. This vertical sump design is widely applied in drying towers, absorption towers, smelting acid circulation systems, and flue-gas sulfuric acid production lines.
Optimized for demanding sulfuric acid applications, this pump provides extended service life, reduced maintenance intervals, and high operational safety. It is the ideal solution for chemical plants seeking a durable, high-efficiency, corrosion-resistant vertical pump for concentrated sulfuric acid transfer
High-Temperature 98% Sulfuric Acid Vertical Pump with Extreme Corrosion Resistance
This high-temperature 98% sulfuric acid vertical pump is purpose-built for the harshest acid-handling conditions, offering exceptional corrosion resistance and operational stability in environments up to 120°C. Utilizing Jiahe’s advanced dual-support structural design, the pump integrates upper angular contact ball bearings to absorb axial forces and lower sliding bearings to support radial loads, ensuring smooth, low-vibration performance throughout extended operation cycles. The deep vertical configuration, with a maximum submerged depth of 3.6 meters, eliminates the need for priming and maintains reliable suction performance under varying tank levels.
The pump’s flow-through components are cast from Jiahe’s high-quality JSB special alloy, a material specifically developed to withstand aggressive sulfuric acid and oleum corrosion. This alloy provides superior resistance to pitting, erosion, and chemical degradation, significantly prolonging the operational lifespan compared to conventional stainless steel or cast iron materials. As a result, this vertical sulfuric acid pump is widely adopted in sulfur-based acid plants, smelting acid production lines, and absorption tower circulation systems that require uninterrupted, safe, and efficient acid transfer.
Designed for high-temperature concentrated sulfuric acid and fuming sulfuric acid handling, this pump delivers consistent performance, reduced downtime, and reliable protection against corrosion-related failures—making it an optimal choice for industries demanding robust and long-lasting sulfuric acid pumping solutions.
Product Details – Corrosion Resistant Sulfuric Acid Pump
The Corrosion Resistant Sulfuric Acid Pump is engineered for high-temperature and high-concentration sulfuric acid transfer, providing reliable performance in the most demanding chemical processing environments. Designed to handle concentrated sulfuric acid with concentrations from 93% to 98% and fuming sulfuric acid at temperatures above 105°C, this vertical sulfuric acid pump ensures stable operation while minimizing vibration and wear. Its robust construction makes it a top choice for industrial chemical pump applications, including drying and absorption circulation systems, smelting acid production, and flue-gas acid handling.
This series features Jiahe’s patented dual-support structure, with two rows of angular contact ball bearings above the liquid level to support axial loads and sliding bearings below the liquid to handle radial forces. This configuration ensures precise load distribution, high rigidity, and smooth operation, making it ideal for continuous acid dosing pump or metering dosing pumpapplications. The vertical sump design also allows for a maximum submerged depth of 3.6 meters, eliminating priming requirements and preventing cavitation during startup or fluctuating liquid levels.
All wetted components are crafted from Jiahe’s proprietary JSB special alloy, which delivers exceptional corrosion resistance and mechanical strength under extreme acid conditions. This high-performance material ensures that the pump functions as both a corrosion resistant pump and acid resistant pump, extending service life while reducing maintenance intervals. The pump’s deep vertical configuration ensures consistent suction performance, reliable chemical transfer, and stable operation even in harsh, high-temperature sulfuric acid environments.
Ideal for a variety of industrial applications, the pump serves as a sulfuric acid transfer pump, high concentrated sulfuric acid pump, chemical centrifugal pump, chemical transfer pump, and sulfuric acid metering pump, making it a versatile solution for chemical plants requiring durability, operational safety, and long-term efficiency. Its advanced materials, dual-support structure, and submerged vertical design combine to provide a high-performance pumping solution capable of uninterrupted operation in severe chemical conditions.
Whether used in absorption towers, drying cycles, smelting acid systems, or flue-gas sulfuric acid production, this corrosion resistant sulfuric acid pump ensures high reliability, reduced downtime, and safe, efficient handling of concentrated and fuming sulfuric acids—making it the ultimate choice for industrial chemical process operators seeking long-lasting, high-efficiency vertical pumps.
