Application Scope:

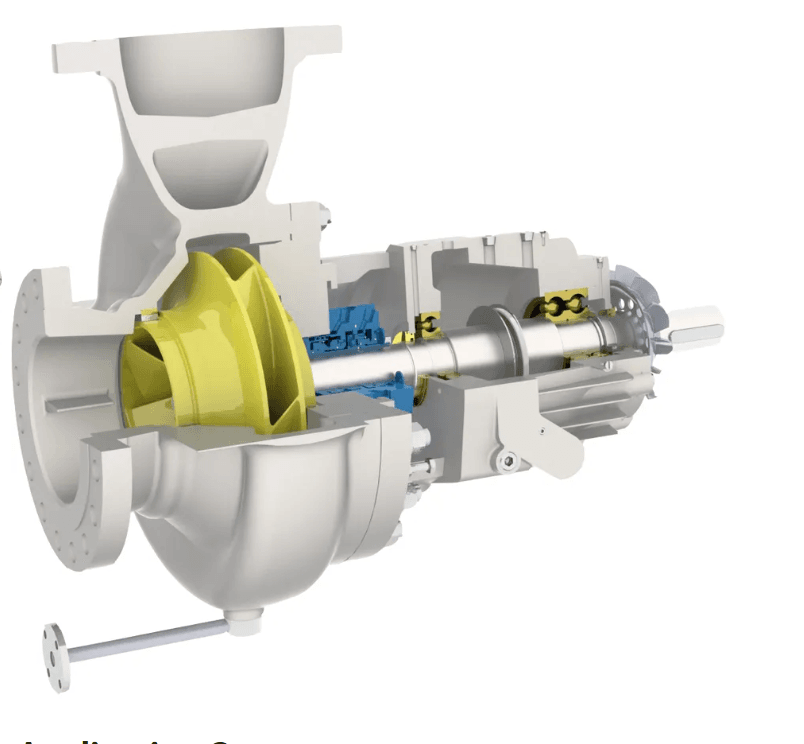

The series are single-stage, single-suction, radially split, centerline-mounted, cantilevered centrifugal pumps. The JHE/JHF series comply with API610-10th and DIN/ISO/VDMA24927 standards; the OHA series meet API610-11 standards. Its optimized design performance and structure accommodate both light and heavy-duty applications, while modular construction enhances pump interchangeability.
Suitable for conveying various clean or slightly particulate-laden media, low-temperature or high-temperature, medium-pressure or high-pressure, neutral or corrosive substances. Used in refineries, petrochemical plants, ethylene facilities, cryogenic engineering, coal chemical plants, fine chemical plants, and other related fields.
Product Details：
| Max.Capacity | ~2000m³/H | Max.Head | ~2100m |
| Impeller Number | Single-Stage Pump | Driving Type | Motor |
| Influent Type of Impeller | Single Suction Pump | Working Pressure | High Pressure Pump |
| Pump Casing Combined | Horizontal Split Pumps | Position of Pump Shaft | Horizontal Pump |
| Impeller | Closed | Mounting Height | Suction Centrifugal |
| Diameter | 25~400mm | Usage | Pump, Pumps |
| Head | ~300m | Flow | ~2600m³/H |
| Temperature | -80℃~450℃ | Pressure | Jhe5MPa/Jhf7.5MPa/Oha5MPa |
| Specification | Customizable | Transport Package | Export Wooden Packaging |
| Origin | China |
API 610 OH2 Pump for Low Temperature Chemical Applications
API 610 OH2 pump is a single-stage, single-suction cantilever centrifugal pump designed for demanding chemical and petrochemical environments. Compliant with API 610 10th edition, DIN/ISO, and VDMA 24927 standards, this pump series ensures reliable performance for both light-duty and heavy-duty applications. The OH2 pump’s centerline-mounted, radially split design allows for easy maintenance, modular interchangeability, and optimal flow efficiency.
Engineered for low-temperature chemical transfer, the OH2 pump handles neutral, corrosive, or slightly particulate-laden liquids under medium to high pressure. It is widely used in refineries, petrochemical plants, cryogenic processes, and coal chemical industries, where precision, durability, and corrosion resistance are critical. Its robust construction supports long-term operation even in harsh chemical environments, making it a preferred choice for industrial engineers seeking a reliable low-temperature chemical pump.
Industrial Chemical Centrifugal Pump for Petrochemical Plants
The industrial chemical centrifugal pump designed according to API 610 standards provides efficient fluid transfer in refineries, ethylene plants, and fine chemical facilities. The pump series, including JHE/JHF (API 610-10) and OHA (API 610-11), delivers superior performance for medium to high-pressure chemical applications. Its single-stage, cantilever, radially split design ensures minimal downtime and high interchangeability, ideal for modular plant operations.
Suitable for low-temperature and high-temperature chemical handling, the pump can transfer neutral, corrosive, or mildly contaminated liquids safely and efficiently. Its optimized design supports heavy-duty industrial use while maintaining energy efficiency and operational safety. As a result, this chemical pump for petrochemical applications has become a trusted solution for engineers managing complex industrial processes, combining long service life with compliance to global standards.
High-Performance API 610 OH2 Centrifugal Pump for Industrial Chemical Applications
The API 610 OH2 pump is a high-performance centrifugal pump designed for demanding chemical and petrochemical applications. This API 610 pump series complies with API 610 / ISO 13709 standards, ensuring top reliability and efficiency in both light-duty and heavy-duty operations. Its single-stage, single-suction, radially split, centerline-mounted, cantilevered design allows for easy maintenance, modular interchangeability, and long-term durability.
As a specialized API 610 chemical process pump, the OH2 pump is suitable for transferring a wide range of media, including clean or slightly particulate-laden liquids, low-temperature or high-temperature fluids, and neutral or corrosive substances. The optimized design ensures stable operation under medium to high-pressure conditions, making it ideal for refineries, petrochemical plants, ethylene facilities, cryogenic engineering, coal chemical plants, and fine chemical industries.
Compared with other pumps, including the API 610 BB2 centrifugal pump, the OH2 pump offers a compact, horizontal configuration with a cantilevered shaft, making it a preferred solution for engineers seeking a reliable and efficient industrial pump. Its compliance with API 610 / ISO 13709 standards guarantees safety, performance, and compatibility with modular plant systems.
Trusted by global operators, the API 610 pump suppliers provide OH2 pumps with customization options, prompt after-sales support, and a one-year warranty, ensuring smooth integration into industrial processes. Whether handling corrosive chemicals or low-temperature liquids, this pump delivers precise, continuous, and energy-efficient operation. Its robust construction and adherence to international standards make the API 610 OH2 pump a cornerstone solution for chemical engineers and plant operators worldwide.
