This series achieves a maximum submerged depth of 3.6 meters. It employs a dual-support structure: above the liquid level, two rows of angular contact ball bearings bear axial loads; below the liquid level, one or two pairs of sliding bearings (i.e., shaft sleeves and bushings) bear radial loads. The flow-through components are crafted from high-quality JSB alloy material, resistant to high-temperature sulfuric acid corrosion, ensuring long service life.
Application Scope:
Used in drying and absorption cycle systems of sulfuric acid production, as well as for conveying finished concentrated sulfuric acid. Suitable for transporting sulfuric acid at temperatures ≤120°C with concentrations ranging from 93% to 98%, or fuming sulfuric acid at temperatures ≥105°C.
Product Details：
| Max.Capacity | ~3520m³/H | Max.Head | ~55m |
| Impeller Number | Single-Stage Pump | Driving Type | Motor |
| Influent Type of Impeller | Single Suction Pump | Working Pressure | 1.0 MPa |
| Usage | Pump, Pumps | Position of Pump Shaft | Vertical Pump |
| Temperature | ~120℃ | Diameter | 50~600mm |
| Material Composition | Metals and Special Alloys | International Certification | API / CE / ISO |
| Transport Package | Wooden Box Packaging | Feature1 | Corrosion Resistant |
| Origin | China | Specification | Customizable |

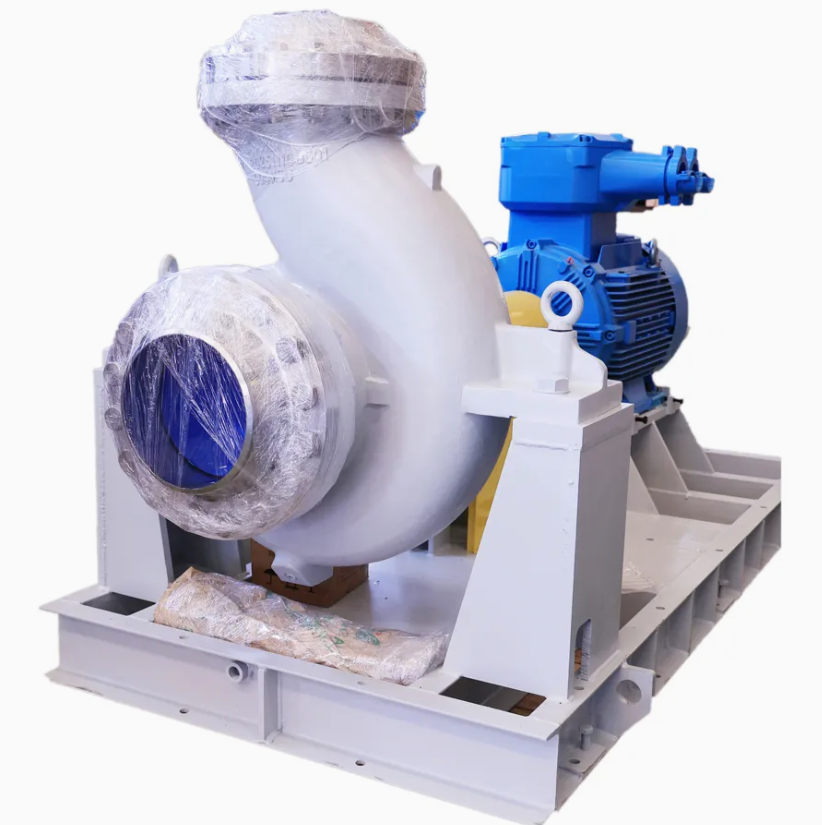

API 610 Sulfuric Acid Resistant Centrifugal Pump for Chemical Processing
Our API 610 chemical process pump is engineered for high-temperature sulfuric acid handling and industrial chemical applications. With a maximum submerged depth of 3.6 meters, it features a dual-support bearing system—dual-row angular contact ball bearings above the liquid and sliding bearings below—ensuring stable, low-vibration operation. The JSB alloy flow-through components resist pitting, corrosion, and stress cracking, providing long-term durability while transporting concentrated sulfuric acid (93–98%) or fuming sulfuric acid ≥105°C. This pump is ideal for drying and absorption cycles, concentrated acid transfer, and continuous chemical processing systems.
Heavy-Duty API 610 Centrifugal Pump for Industrial Sulfuric Acid Applications
This API 610 chemical process pump excels in industrial sulfuric acid production and high-demand chemical transfer. Its dual-support design distributes axial and radial loads efficiently, reducing wear and maintenance needs. Constructed with corrosion-resistant JSB alloy, it safely handles temperatures up to 120°C and fuming sulfuric acid ≥105°C, providing reliable performance in critical applications. Perfect for industrial acid circulation pipelines and process systems, it ensures extended service life, enhanced safety, and precise, energy-efficient operation, making it a trusted choice for chemical plants and industrial facilities.
High-Performance API 610 Chemical Process Pump for Sulfuric Acid and Industrial Applications
Our API 610 chemical process pump is engineered to meet the demanding requirements of industrial and chemical applications, including sulfuric acid transport, high-temperature chemical handling, and continuous industrial acid circulation. This API 610 / ISO 13709 centrifugal pumpfeatures a maximum submerged depth of 3.6 meters, a dual-support bearing system, and corrosion-resistant JSB alloy construction for exceptional durability. Dual-row angular contact ball bearings above the liquid handle axial loads, while 1–2 pairs of sliding bearings below the liquid absorb radial forces, ensuring stable, low-vibration operation. The JSB alloy flow-through components resist pitting, stress cracking, and high-temperature sulfuric acid corrosion, providing long-term reliability for critical chemical processes.

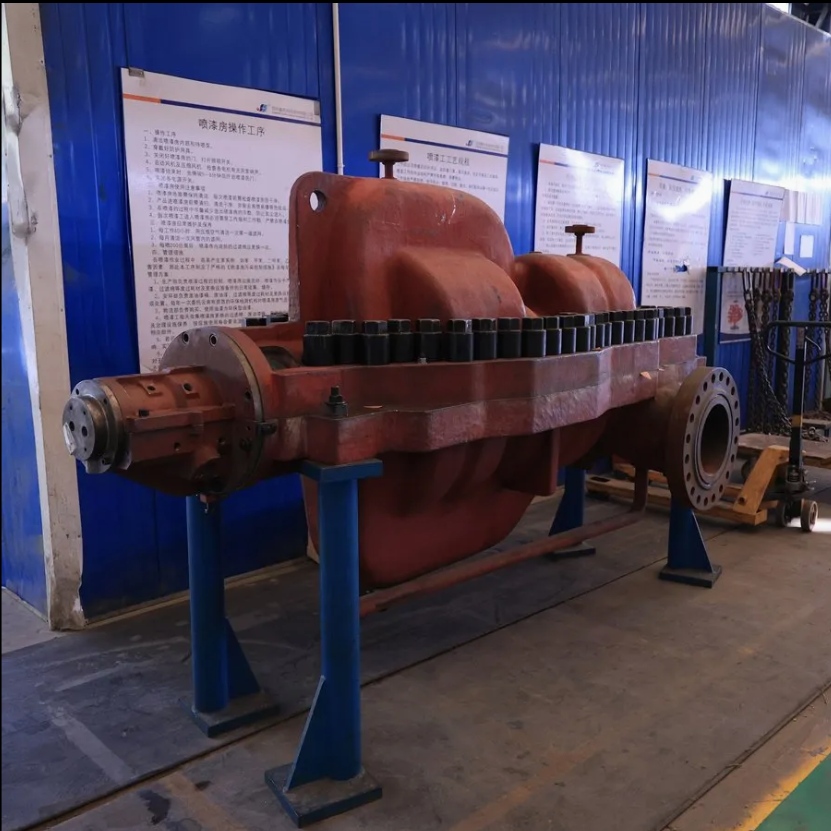

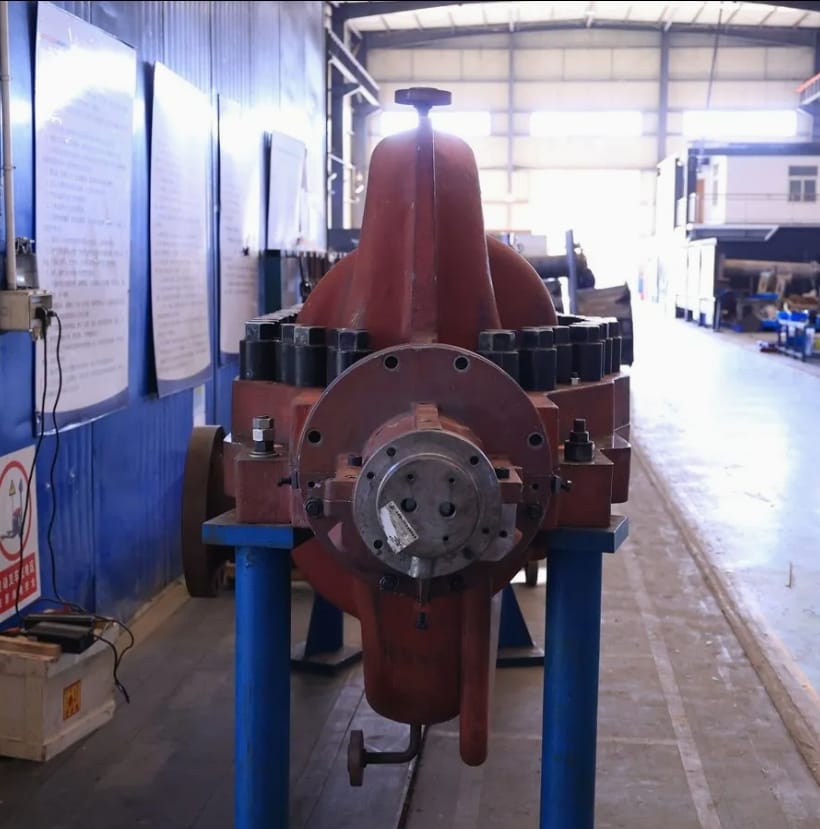

This series includes multiple configurations to fit various industrial needs. The API 610 OH2 pumpis ideal for horizontal, single-stage applications, while the API 610 BB2 centrifugal pump provides back-to-back bearing support for heavy-duty, continuous operation. These pumps are trusted as industrial pumps and process pumps in chemical plants, sulfuric acid production facilities, and high-temperature industrial acid pipelines. They are suitable for transporting concentrated sulfuric acid (93–98%) at temperatures up to 120°C, as well as fuming sulfuric acid ≥105°C, making them perfect for drying and absorption cycle systems, oleum transfer, and other high-demand chemical processes.
Certified API 610 pump suppliers ensure expert consultation, fast delivery, and full after-sales support for selecting the right pump model for your industrial or chemical process. These centrifugal pumps combine precision engineering, energy-efficient operation, and reduced maintenance needs. Plants benefit from enhanced safety, extended service life, and reliable performance in harsh chemical environments. Whether you require an API 610 pump, API 610 / ISO 13709 centrifugal pump, industrial pump, or chemical process pump, this series offers superior corrosion resistance, high efficiency, and long-term durability.
Trusted by engineers and operators worldwide, this API 610 chemical process pump series delivers precise, reliable, and continuous operation in sulfuric acid production, industrial acid circulation, and high-temperature chemical applications. Its robust design and international compliance make it the preferred solution for modern chemical plants, industrial facilities, and process systems requiring dependable, high-performance centrifugal pumps for demanding environments.
